WSL Solar’s Latest Product – 5W Solar Panel | IoT Solar Panel

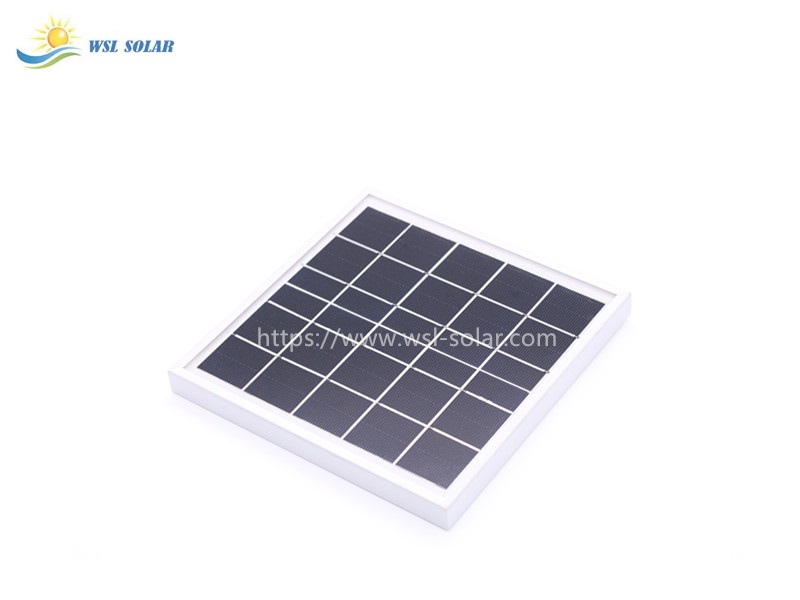

5W Solar Panel

This 5v 5w solar panel utilizes high efficiency mono PERC solar cells with efficiency up to 22.5%, to ensure its high output. It is laminated by tempered glass to protect the solar cells inside, making it rigid, durable and long lasting. This IoT solar panel is waterproof, scratch resistant, and UV resistant, specially designed for long term outdoor use in any challenging condition.

Key Features:

– Utilize high efficiency mono PERC solar cell, up to 22.5% efficiency
– Laminated by tempered glass, rigid, durable and long lasting
– Waterproof, scratch resistant, and UV resistant
– Customized solar panels for industrial use

Applications:
Tempered glass solar panels are widely used in IoT applications, marine buoys, wireless sensors, traffic warning devise, GPS devices, asset tracking, electric fence chargers, outdoor lighting systems, weather monitoring systems etc.

Solar Panel Specification

Item No.WSL-C028
Solar Panel Size185x185x15mm
Peak Power (Pmax)5.5W
Voltage at Pmax (Vmp)5.5V
Current at Pmax (Imp)1A
Open Circuit Voltage (Voc)6.6V
Short Circuit Current (Isc)1.1A
Solar Cell TypeMono PERC Solar Cell
Power Tolerance±5%
Encapsulation method3.2mm Tempered glass
Back sheetTPT
Product Warranty5 Years
Lead time25 Days
Storage temperature-40°C ~ 85°C
Working temperature-40°C ~ 85°C
Standard Test Conditions (STC)1000W/m2, 1.5AM, 25°C Cell temperature

Click here to watch the video of this type of custom solar panels.

View More Custom Solar Panels

5V Solar Panels   |  6V Solar Panels   |  9V Solar Panels

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.

Custom Solar Panel, 10W 3V

WSL Solar’s 3V 10W solar panel is built with the latest PERC monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This custom solar panel is ideal for use in off grid applications such as solar powered LED lighting, IoT solar, solar traffic sign, small solar powered system etc.

  • Features:
  • – WSL Solar’s 3V 10W solar panel adopts the latest PERC monocrystalline solar cell,  >21% efficiency.
  • – Dimension 345x190x18mm
  • – Laminated by tempered glass, durable & robust
  • – Ideal for use in solar powered LED lighting, IoT solar,solar traffic sign and small solar powered systems etc.
custom solar panel, 10w solar panel
10W Solar Panel

Specification

Item No.WSL-C025
Dimension345x190x18mm
Peak Power (Pmax)10.5W
Voltage at Pmax (Vmp)3.3V
Current at Pmax (Imp)3.182A
Open Circuit Voltage (Voc)3.96V
Short Circuit Current (Isc)3.5A
Cell TypePERC Monocrystalline Solar Cell
Power Tolerance±5%
Encapsulation method3.2mm Tempered glass
Back sheetTPT
Product Warranty5 Years
Lead time25 Days
Storage temperature-20°C ~ 65°C
Working temperature-40°C ~ 85°C
Standard Test Conditions (STC)1000W/m2, 1.5AM, 25°C Cell temperature

Click here to watch the video of this type of custom solar panels.

View More Custom Solar Panels 5V Solar Panels   |  6V Solar Panels   |  9V Solar Panels

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.

How to Inquire a Custom Solar Panel?

There are different types of custom solar panels: tempered glass solar panel or PET solar panel; mono solar panel or poly solar panel; black solar panel or white solar panel; with frame or not; with junction box or with ribbon only; need wire and terminal or not etc. Do you know how to inquire a custom solar panel? Hope this video could be helpful for you.

How to Inquire a Custom Solar Panel?

What is IBC Solar Panel ?

IBC solar panels are built with the super high efficiency IBC solar cells (“Interdigitated back contact” solar cells). They are laminated by ETFE or PET film, which is light weight and thin. Thess customized solar panels are ideal for use in off grid applications such as IoT devices, smart phones, radio, Bluetooth, wireless sensors, RF Radio Sensitivity or solar gifts etc.

IBC solar panel, custom solar panel, ETFE solar panel, IoT Solar
IBC Solar Panel

Features:
– IBC solar cell with efficiencies of up to 23% guarantee high power output
– Matte finish and no busbar on panel surface
– ETFE or PET laminated, light weight and thin
– Waterproof, scratch resistant & UV resistant
– Excellent performance under low light environments
– Custom manufacturing in various size & shapes available upon request

Lists of existing IBC solar panels from WSL Solar.

ItemSpecificationSizeSolar Cell TypeLamination
WSL-S0016V 1.2W Custom Solar Panel85x85x1.8mmIBC Solar CellPET Film
WSL-S0025V 0.2W Round Solar PanelD=43mmx1.8mmIBC Solar CellPET Film
WSL-S0032V 80mA Small Solar Panel40x30x1.8mmIBC Solar CellPET Film
WSL-S0045V 0.75W mini Solar Panel70x60x2mmIBC Solar CellETFE Film
WSL-S0055V 1W IoT Solar Panel95x69x2mmIBC Solar CellETFE Film
WSL-S0064V 150mA Custom Solar Panel93x40x2mmIBC Solar CellPET Film
WSL-S0075.5V 1W Small Solar Panel80x80x2mmIBC Solar CellETFE Film

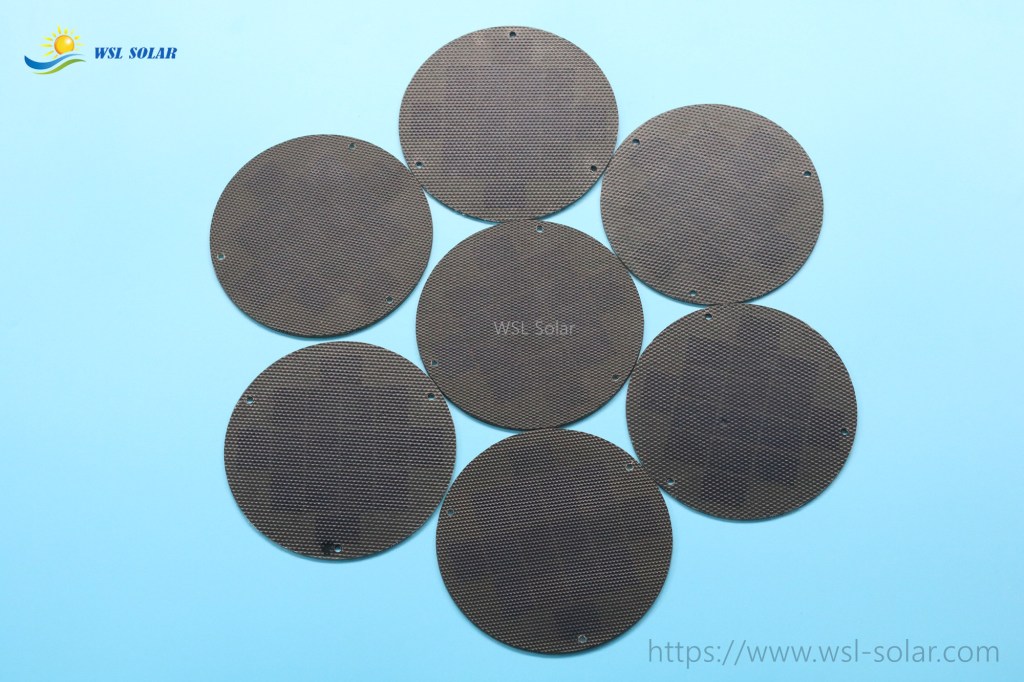

WSL-S0086V 120mA Circular Solar PanelD=89mmx2mmIBC Solar CellETFE Film
WSL-S0095V 0.6W ETFE Solar Panel65x65x2mmIBC Solar CellETFE Film
WSL-S0105.5V 1.6W ETFE Solar Panel120x70x2mmIBC Solar CellETFE Film
WSL-S0113V 0.4W PET Solar Panel57x50x2mmIBC Solar CellPET Film
WSL-S0125.5V 0.2W Mini Solar Panel30x50x2mmIBC Solar CellPET Film
IBC Solar Panels

WSL Solar has been a quality and professional manufacturer of customized solar panels and solar solution provider in China since 2006.

https://www.wsl-solar.com

Quality Customized Solar Panel Manufacturer – WSL Solar

Good business relationship based on sincere cooperation and mutual benefits.

Thanks to all our customers for their great support. We will continue to control the quality and provide high efficient and quality custom solar panels, which is the best way for us to give back to customers.

Quality Customized Solar Panel from WSL Solar.

Quality is always the first thing for us. We stick to strict quality control, from raw material sourcing, manufacturing process to finished product testing, we pay attention to details in each step, to deliver our clients the right solar panel for their solar application.

https://www.wsl-solar.com

Custom Solar Panel – WSL Solar

5 Volt 1 Watt Solar Panel

Features:
– WSL Solar’s 5V 1W solar panel adopts  the latest PERC monocrystalline solar cell,  >21% efficiency.
– Dimension 90x90x4.5mm
– Laminated by tempered glass, durable & robust
– Ideal for use in solar powered LED lighting, IoT solar,
solar traffic sign and small solar powered systems etc.

WSL Solar’s 5 volt 1 watt solar panel is built with the latest PERC monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This custom solar panel is ideal for use in off grid applications such as solar powered LED lighting, IoT solar, solar traffic sign, small solar powered system etc.

Features:
– With latest high efficiency PERC monocrystalline solar cell
– Positive power tolerance
– Tempered glass laminated, high transmission, durable & robust
– Withstanding challenging environmental conditions
– Waterproof, scratch resistant & UV resistant
– Excellent performance under low light environments

Specification

Item No.WSL-C024
Dimension90x90x4.5mm
Peak Power (Pmax)1W
Voltage at Pmax (Vmp)5V
Current at Pmax (Imp)200mA
Open Circuit Voltage (Voc)6V
Short Circuit Current (Isc)220mA
Cell TypePERC Monocrystalline Solar Cell
Power Tolerance±5%
Encapsulation method3.2mm Tempered glass
Back sheetTPT
Product Warranty5 Years
Lead time25 Days
Storage temperature-20°C ~ 65°C
Working temperature-40°C ~ 85°C
Standard Test Conditions (STC)1000W/m2, 1.5AM, 25°C Cell temperature

View More Custom Solar Panels

5V Solar Panels   |  6V Solar Panels   |  9V Solar Panels

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.

What is an Amorphous Silicon Solar Cell | WSL Solar

Amorphous silicon solar cells (a-Si solar cell) are devices that convert light energy into electrical energy through photoelectric or photochemical effects.

Amorphous silicon cells are solar cells made of amorphous silicon thin films deposited on conductive glass substrates. This kind of solar cell features with low cost and good performance at weak light condition, it has been widely used in micro-low-power power supplies for indoor use, such as watch batteries, calculator batteries and self-powered wireless sensor etc .

Welcome to watch this video to know more about a-Si solar cell.

Created by Carrie Wong | WSL Solar

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.

https://www.wsl-solar.com

Custom Solar Panel | 6V 2W

WSL Solar’s 6V 2W solar panel is built with the latest most efficient polycrystalline solar cell. It is laminated by tempered glass, which is durable and robust.

This custom solar panel is great for charging your 3.7-volt DC batteries and ideal for use in off grid applications such as solar lanterns, wireless sensors, wall lights, edge marking light etc.

Features:

– With cutting-edge high efficiency poly solar cell

– Positive power tolerance

– Tempered glass laminated, high transmission, durable & robust

– Withstanding challenging environmental conditions

– Waterproof, scratch resistant & UV resistant

Solar panel size: 125x135x4.5mm

WSL Solar has been a quality and professional manufacturer of customized solar panels and solar solution provider in China since 2006.

https://www.wsl-solar.com
