3w solar panel – Custom Solar Panel

12V 3W Solar Panel

This 12V 3W solar panel is built with high-efficiency PERC solar cells, delivering up to 21% efficiency. It not only has stable output power, but also has good low light performance. This custom solar module is encapsulated with tempered glass, which makes it durable and long service life. This 3W solar panel is also waterproof, UV resistant and scratch resistant.

Features:

– Built with high efficiency PERC solar cell, upto 21% efficiency
– Tempered glass encapsulation, durable, long service life
– Positive tolerance power, consistent appearance
– Waterproof, UV- and scratch- resistant
– Excellent performance under low light environments

Applications:
This custom solar module is widely used in wireless sensors, IoT devices, marine devices, traffic signs, LED lights and other small electronics etc.

Item No.: FYD-CS005
Technical Details
Output:
Peak Power (Pmax): 3W
Voltage at Pmax (Vmp): 12V
Current at Pmax (Imp): 250mA
Open Circuit Voltage (Voc): 14V
Short Circuit Current (Isc): 270mA
Power Tolerance: ±5%
Solar Panel Size: 150x150x4.5mm
Cell Type: High Efficiency Mono Solar Cell
Number of Cells: 24 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)
Product Warranty: 5 Years
Storage temperature: -20°C ~ 45°C
Working temperature: -40°C ~ 65°C
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature　

Custom solar panel design and wire soldering service are available.

Findy Solar has been a solar panel solution provider and high efficiency custom solar panel manufacturer in China since 2006. Types of solar panels: custom solar modules, ETFE solar panels, amorphous solar panels.
Welcome to contact us at info@findysolar.com.

https://www.findysolar.com

4V 3W Solar Panel

This 4V 3W solar panel is built with high-efficiency PERC solar cells, delivering up to 21% efficiency. It not only has stable output power, but also has good low light performance. This custom solar module is encapsulated with tempered glass, which makes it durable and long service life. This 4V solar panel is also waterproof, UV resistant and scratch resistant.

Features:

Applications:
This custom solar module is widely used in wireless sensors, IoT devices, marine devices, traffic signs, LED lights and other small electronics etc.

Item No.: FYD-CS004
Technical Details
Output:
Peak Power (Pmax): 3.4W
Voltage at Pmax (Vmp): 4V
Current at Pmax (Imp): 850mA
Open Circuit Voltage (Voc): 4.8V
Short Circuit Current (Isc): 930mA
Power Tolerance: ±5%
Solar Panel Size: 230x90x4.5mm
Cell Type: High Efficiency Mono Solar Cell
Number of Cells: 8 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)
Product Warranty: 5 Years
Storage temperature: -20°C ~ 45°C
Working temperature: -40°C ~ 65°C
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature　

Custom solar panel design and wire soldering service are available.

https://www.findysolar.com/

6V 3W Solar Panel

This 6V 3W solar panel is built with high-efficiency PERC solar cells, delivering up to 21% efficiency. It not only has stable output power, but also has good low light performance. This custom solar module is encapsulated with tempered glass, which makes it durable and long service life. This 3W solar panel is also waterproof, UV resistant and scratch resistant.

Features:

Applications:
This custom solar module is widely used in wireless sensors, IoT devices, marine devices, traffic signs, LED lights and other small electronics etc.

Item No.: FYD-CS002

Technical Details

Output:
Peak Power (Pmax): 3W
Voltage at Pmax (Vmp): 6V
Current at Pmax (Imp): 500mA
Open Circuit Voltage (Voc): 7.2V
Short Circuit Current (Isc): 550mA
Power Tolerance: ±5%
Solar Panel Size: 120x160x4.5mm
Cell Type: High Efficiency Mono Solar Cell
Number of Cells: 12 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)
Product Warranty: 5 Years
Storage temperature: -20°C ~ 45°C
Working temperature: -40°C ~ 65°C
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature

Source of origin: https://www.findysolar.com/6V-3W-Solar-Panel.html

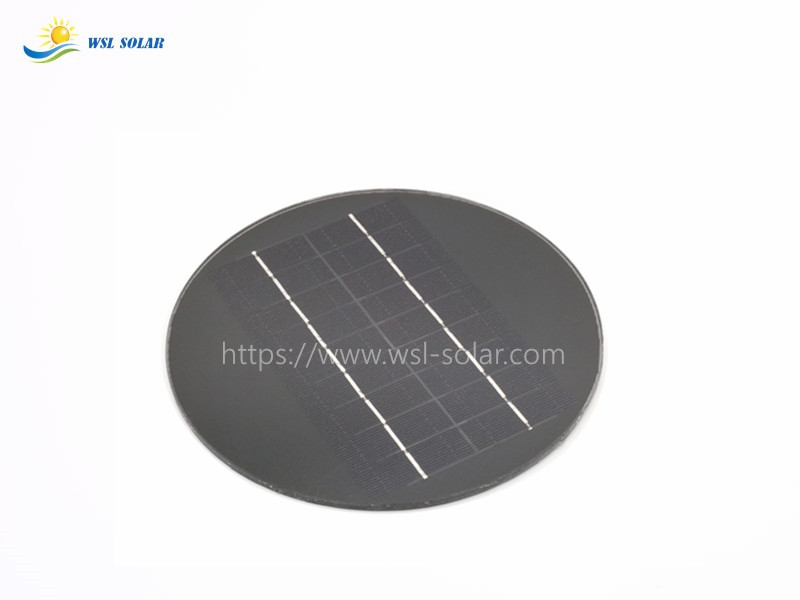

Round Solar Panel 9V 2.7W

Key Features:
– Utilize high efficiency mono PERC solar cell, up to 22.5% efficiency
– Laminated by tempered glass, rigid, durable and long lasting
– Waterproof, scratch resistant, and UV resistant
– Customized solar panels for industrial use

Description:
2.7W 9V Solar Panel

This 2.7W 9V round solar panel utilizes high efficiency mono PERC solar cells with efficiency up to 22.5%, to ensure its high output. It is laminated by tempered glass to protect the solar cells inside, making it rigid, durable and long lasting. This rigid solar panel is waterproof, scratch resistant, and UV resistant, specially designed for long term outdoor use in any challenging condition.

Applications:
Tempered glass solar panels are widely used in IoT applications, marine buoys, wireless sensors, traffic warning devise, GPS devices, asset tracking, electric fence chargers, outdoor lighting systems, weather monitoring systems etc.

Solar Panel Specification

Item No.	WSL-C030
Solar Panel Size	D=180mm*5mm
Peak Power (Pmax)	2.7W
Voltage at Pmax (Vmp)	9V
Current at Pmax (Imp)	0.3A
Open Circuit Voltage (Voc)	10.8V
Short Circuit Current (Isc)	0.33A
Solar Cell Type	Mono PERC Solar Cell
Power Tolerance	±5%
Encapsulation method	3.2mm Tempered glass
Back sheet	TPT
Product Warranty	5 Years
Lead time	25 Days
Storage temperature	-20°C ~ 65°C
Working temperature	-40°C ~ 85°C
Standard Test Conditions (STC)	1000W/m2, 1.5AM, 25°C Cell temperature

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.

https://www.wsl-solar.com

3W Solar Panel | Custom Solar Panel

Key Features:
– Utilize high efficiency mono PERC solar cell, up to 22.5% efficiency
– Laminated by tempered glass, rigid, durable and long lasting
– Waterproof, scratch resistant, and UV resistant
– Customized solar panels for industrial use

Description:
5V 3W Solar Panel

This custom shaped 3w solar panel utilizes high efficiency mono PERC solar cells with efficiency up to 22.5%, to ensure its high output. It is laminated by tempered glass to protect the solar cells inside, making it rigid, durable and long lasting. This rigid solar panel is waterproof, scratch resistant, and UV resistant, specially designed for long term outdoor use in any challenging condition.

Applications:
Tempered glass solar panels are widely used in IoT applications, marine buoys, wireless sensors, traffic warning devise, GPS devices, asset tracking, electric fence chargers, outdoor lighting systems, weather monitoring systems etc.

Solar Panel Specification

Item No.	WSL-C029
Solar Panel Size	155x155x4.5mm
Peak Power (Pmax)	3.2W
Voltage at Pmax (Vmp)	5V
Current at Pmax (Imp)	640mA
Open Circuit Voltage (Voc)	6V
Short Circuit Current (Isc)	704mA
Solar Cell Type	Mono PERC Solar Cell
Power Tolerance	±5%
Encapsulation method	3.2mm Tempered glass
Back sheet	TPT
Product Warranty	5 Years
Lead time	25 Days
Storage temperature	-40°C ~ 85°C
Working temperature	-40°C ~ 85°C
Standard Test Conditions (STC)	1000W/m2, 1.5AM, 25°C Cell temperature

Click here to watch the video of this type of custom solar panels.

View More Custom Solar Panels

5V Solar Panels | 6V Solar Panels | 9V Solar Panels

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.

Source of origin: https://www.wsl-solar.com/3w-solar-panel.html

Latest Custom Solar Panel from WSL Solar | 6 Volt Solar Panel 3W

Features:
– WSL Solar’s 3W 6V solar panel adopts the latest PERC monocrystalline solar cell, >21% efficiency.
– Dimension 120x160x4.5mm
– Laminated by tempered glass, durable & robust
– Ideal for use in solar powered LED lighting, IoT solar,
solar traffic sign and small solar powered systems etc.

WSL Solar’s 6 Volt solar panel 3W is built with the latest PERC monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. This custom solar panel is ideal for use in off grid applications such as solar powered LED lighting, IoT solar, solar traffic sign, small solar powered system etc.

Features:
– With latest high efficiency PERC monocrystalline solar cell
– Positive power tolerance
– Tempered glass laminated, high transmission, durable & robust
– Withstanding challenging environmental conditions
– Waterproof, scratch resistant & UV resistant
– Excellent performance under low light environments

Specification

Item No.	WSL-C023
Dimension	120x160x4.5mm
Peak Power (Pmax)	3W
Voltage at Pmax (Vmp)	6V
Current at Pmax (Imp)	0.5A
Open Circuit Voltage (Voc)	7.2V
Short Circuit Current (Isc)	0.55A
Cell Type	PERC Monocrystalline Solar Cell
Power Tolerance	±5%
Encapsulation method	3.2mm Tempered glass
Back sheet	TPT
Product Warranty	5 Years
Lead time	25 Days
Storage temperature	-20°C ~ 65°C
Working temperature	-40°C ~ 85°C
Standard Test Conditions (STC)	1000W/m2, 1.5AM, 25°C Cell temperature

WSL Solar has been a quality and professional manufacturer of custom solar panels and solar solution provider in China since 2006.
