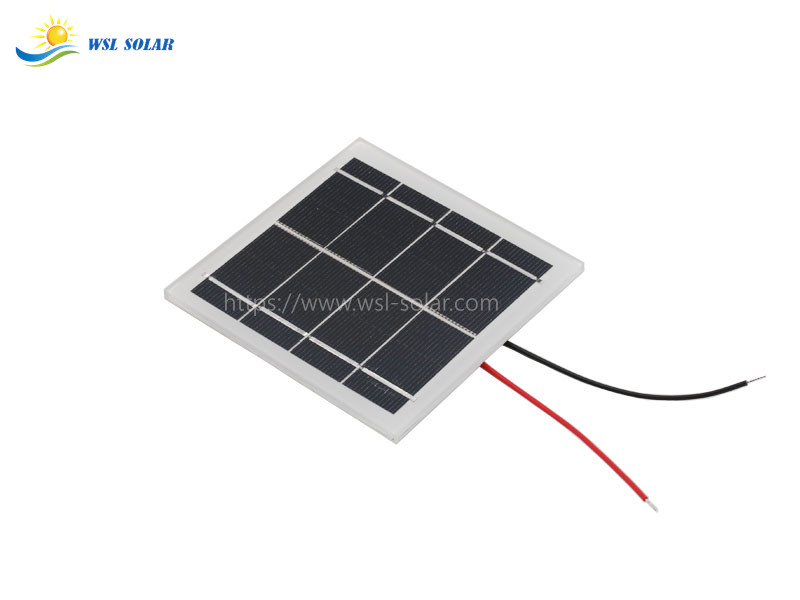

This 5V 1W solar panel is built with high-efficiency monocrystalline solar cells. It not only has stable output power, but also has good low light performance. This custom solar module is encapsulated with tempered glass, which makes it durable and long service life. This 1W solar panel is also waterproof, UV resistant and scratch resistant.
Features
– Built with high efficiency monocrystalline solar cell
– Tempered glass encapsulation, durable, long service life
– Positive tolerance power, consistent appearance
– Waterproof, UV- and scratch- resistant
– Excellent performance under low light environments
Applications:
This custom solar module is widely used in wireless sensors, IoT devices, crafts, toys, LED lights and other small electronics etc.
Technical Details
Output:
Peak Power (Pmax): 1W
Voltage at Pmax (Vmp): 5V
Current at Pmax (Imp): 200mA
Open Circuit Voltage (Voc): 6V
Short Circuit Current (Isc): 220mA
Power Tolerance: ±5%
Solar Panel Size: 90x90x4.5mm
Cell Type: High Efficiency Mono Solar Cell
Number of Cells: 10 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)
Product Warranty: 5 Years
Storage temperature: -20°C ~ 45°C
Working temperature: -40°C ~ 65°C
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature
Custom solar panel design and wire soldering service are available.
Findy Solar has been a solar panel solution provider and high efficiency custom solar panel manufacturer in China since 2006. Types of solar panels: custom solar modules, ETFE solar panels, amorphous solar panels.
